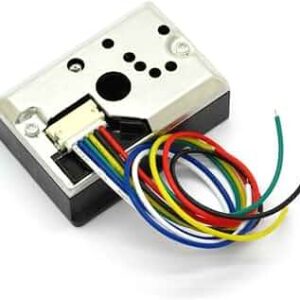

Power supply voltage: DC5 ± 2V Sensitivity: 0.5V / (0.1mg / m3) The minimum detection level of particles: 0.8 m Clean air voltage: 0.9V typ. Low consumption current (Icc: MAX. 20 mA) The presence of dust can be detected by the photometry of only one pulse Enable to distinguish smoke from house dust
Low-noise analog signal path Device bandwidth is set via the new FILTER pin 5 µs output rise time in response to step input current Small footprint, low-profile SOIC8 package 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8 Supply Voltage: 4.5V~5.5V DC Measure Current Range: 20A Sensitivity: 100mV/A
The 650nm 5V Red Laser Diode Module is a compact, high-performance laser emitter designed for robotics, optical alignment, counter sensors, and laser security systems. Featuring a copper-housed 650nm red diode, 5V DC operation, and a 3-pin breadboard-friendly header, it integrates seamlessly with Arduino, Raspberry Pi, and ESP32 microcontrollers.
High precision Capacitive type Full range temperature compensated Relative humidity and temperature measurement Calibrated digital signal Outstanding long-term stability Extra components not needed Long transmission distance Low power consumption 4 pins packaged and fully interchangeable

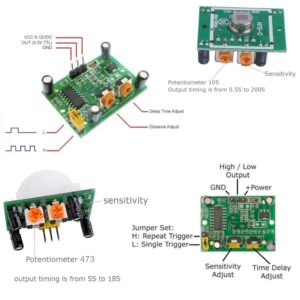

Wide Working Voltage Range: DC 4.5V- 20V Current Drain: <60uA Detection Angle: <140° Detection Distance: 3 to 7m (can be adjusted) Blockade time: 2.5s (Default)  Work temperature: -20-+80°C
The module can detect the surrounding environment of the humidity and temperature High reliability and excellent long-term stability The output from the digital output Humidity measuring range: 20%~90%RH(0~50 degree (temperature compensation). Temperature measuring range: 0~+50degree. Humidity measurement accuracy: ±5.0%RH. Temperature measurement accuracy: ±2.0degree.
₹260Original price was: ₹260.₹185Current price is: ₹185.
It is an integrated pulse oximetry and heart rate monitor sensor solution. Integrated LEDs, Photo Sensor, and High-Performance Analog Front -End Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design Measures absorbance of pulsing blood I2C interface plus INT pin Tiny 5.6mm x 2.8mm x 1.2mm 14-Pin Optically Enhanced System-in-Package Ultra-Low-Power Operation Increases Battery Life for Wearable Devices Programmable Sample…
Accurate NPK nutrient detection IP68 waterproof & anti-corrosion RS485 Modbus communication Real-time data for smart farming Stable performance in tough environments.
AI and Voice Module for offline speech recognition. Model: Ai-Thinker VC-02-Kit. Operates with a 5V supply voltage. Current consumption: 500mA. Supports various communication interfaces like UART, I2C, DAC, PWM.
Diameter : 30mm Length : 15mm Input Voltage : 3V-12V Features Long life Stable Performance High Quality with SOT plastic package. High quality buzzer for bike and electronic projects Package Includes 1 x 3V-12V Big Buzzer with Wire
Operating voltage: 3.3 to 5V Current supply: 100mA Output voltage range: 0V to supplied voltage Output format: 8 digital I/O compatible signal Sensing distance: 3mm Maximum sensing distance: 9.5mm
Accelerometer, Gyroscope, and Magnetometer Power Supply: DC3.3V-5V Chip: MPU9250 Size: 22 mm x 17 mm. Gyro range : ? 250 500 1000 2000 ? / s Acceleration range: ? 2 ? 4 ? 8 ? 16g Magnetic field range: ? 4800uT 9 DOF modules
Working Voltage: 5 to 18V DC (min tested working voltage 4.5V). Max current draw: 15mA @ 5V. Working Flow Rate: 1 to 30 Liters/Minute. Maximum water pressure: 2.0 MPa. Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min).
Operating Voltage: 3V-5V High-resolution conversion of light intensity to frequency. Chip pins all has drawn for standard 100. Put the needle (2.54 mm). Mil-convenient for bitmap board. Programmable color and full-scale output frequency. Communicate directly with a microcontroller. Low-profile surface mount package.

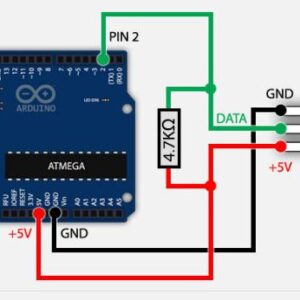

Digital signal output 18B20 Temperature Sensor Chip Resolution adjustment ranges from 9-12 bytes. Send data via a pin Temperature measurement ranges: -55°C to +125°C, be accurate to 0.5°C.
Good sensitivity to CO/Combustible Gas High sensitivity to Methane, Propane, and CO Long life and low cost Simple drive circuit Input voltage: DC 5±0.2V Current Consumption: 150mA
Power requirements: 5 VDC @ ~165 mA (heater on) / ~60 mA (heater off). Current Consumption: 150mA. DO output:Â 0.1 and 5V. AO output: 0.1- 0.3 V (relative to pollution), the maximum concentration of a voltage of about 4V Detecting Concentration: 0.05-10mg/L Alcohol.
Using high-quality dual-panel design, with power indicator and TTL signal output instructions. The switching signal having a DO (TTL) output and analog output AO. TTL output valid signal is low. The higher the voltage, the concentration of the analog output voltage is higher. A hydrogen gas detection with good sensitivity. Has a long life and reliable stability
Operating voltage: 5V Provide both digital and analog output Adjustable sensitivity Output LED indicator Compatible with Arduino TTL Compatible Bolt holes for easy installation
